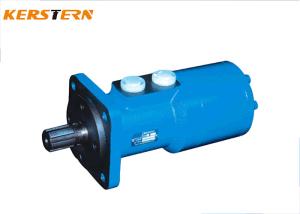

High Pressure Spool Valve Hydraulic Orbit Motor Eaton 6000 Series KM6 for Machinery
Note:
1.Continuous data:The Max.Value of operating motor continuously.
2.Intermittent Data:The Max.Value of operating motor in 6 seconds per minute.
3.A simultaneous max. RPM and max. Pressure is not recommended.
4.The Conversion Factors is on the page 4, consult it please.
5.Optimum operating situation should be at the 1/3 ~ 2/3 of the continuous operating situation.
Specifications:
| Displacement(ml/r) | 195 | 245 | 310 | 395 | 490 | 625 | 800 | 985 |
| Flow(LPM) | Cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Int.. | 170 | 210 | 225 | 225 | 225 | 225 | 225 | 225 |
| Speed(RPM) | Cont. | 775 | 615 | 485 | 383 | 307 | 241 | 184 | 153 |
| Int.. | 866 | 834 | 698 | 563 | 454 | 355 | 276 | 230 |
| Pressure(Mpa) | Cont. | 20.5 | 20.5 | 20.5 | 20.5 | 17 | 14 | 12 | 12 |
| Int.. | 31 | 31 | 31 | 31 | 27.5 | 17 | 14 | 14 |
| Torque(N*m) | Cont. | 575 | 735 | 930 | 1169 | 1215 | 1330 | 1380 | 1570 |
| Int.. | 860 | 1180 | 1335 | 1655 | 1885 | 1380 | 1650 | 1875 |
Descrition:
Compact in design with spool valving and Geroler
Imported high pressure capacity shaft seal
Wide variety of mounting flanges, shafts, ports
and speed provides design flexibility
Direction of shaft rotation and speed can be controlled easily and smoothly
Best combination of efficiency and economy in medium duty applications
Applications: Hydraulic system, engineering machine, industry machine
Competitive Advantage: Good quality, Complete Series, Competitive price and Best service.
packing:
transportation:
1. who are we?
We are based in Jinan, China, start from 2003.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Hydraulic motor
4. How long is the Warranty?
One-year warranty.
5. What is your payment terms?
Re: 100% in advance, long-term dealer 30% in advance, 70% beofre shipping.
6. How about the delivery time?
Normal Models within 2 days, unusual models and bulk order within 5-10 days.
Product Tags:
|
|
Orbit High Torque Dc Variable Hydraulic Motor 6K KM6 For Machinery Images
|
